Horizontal Stabilizer – Day 22 – 3 hours

More riveting today. Finished up all the “bucked” rivets on the left side and moved onto the right. As I went, I found that putting a little masking tape over the mushroom set on the rivet gun reduces the marring on the skin. I saw this on some other builder sites. I’m planning on painting my plane so the marring isn’t making me lose any sleep but I figured, why not. I had about 2 dings here and there from not holding the set flat against the surface of the skin on it but from what I’ve seen on other builder sites that’s to be expected. And also the right side looks a bit better than the left (Another thing other builders have noticed).

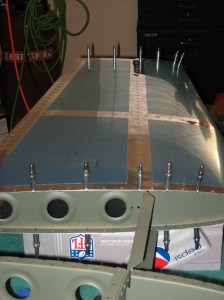

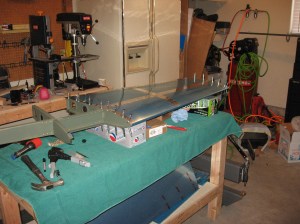

Left side on:

IMG_0625

IMG_0626

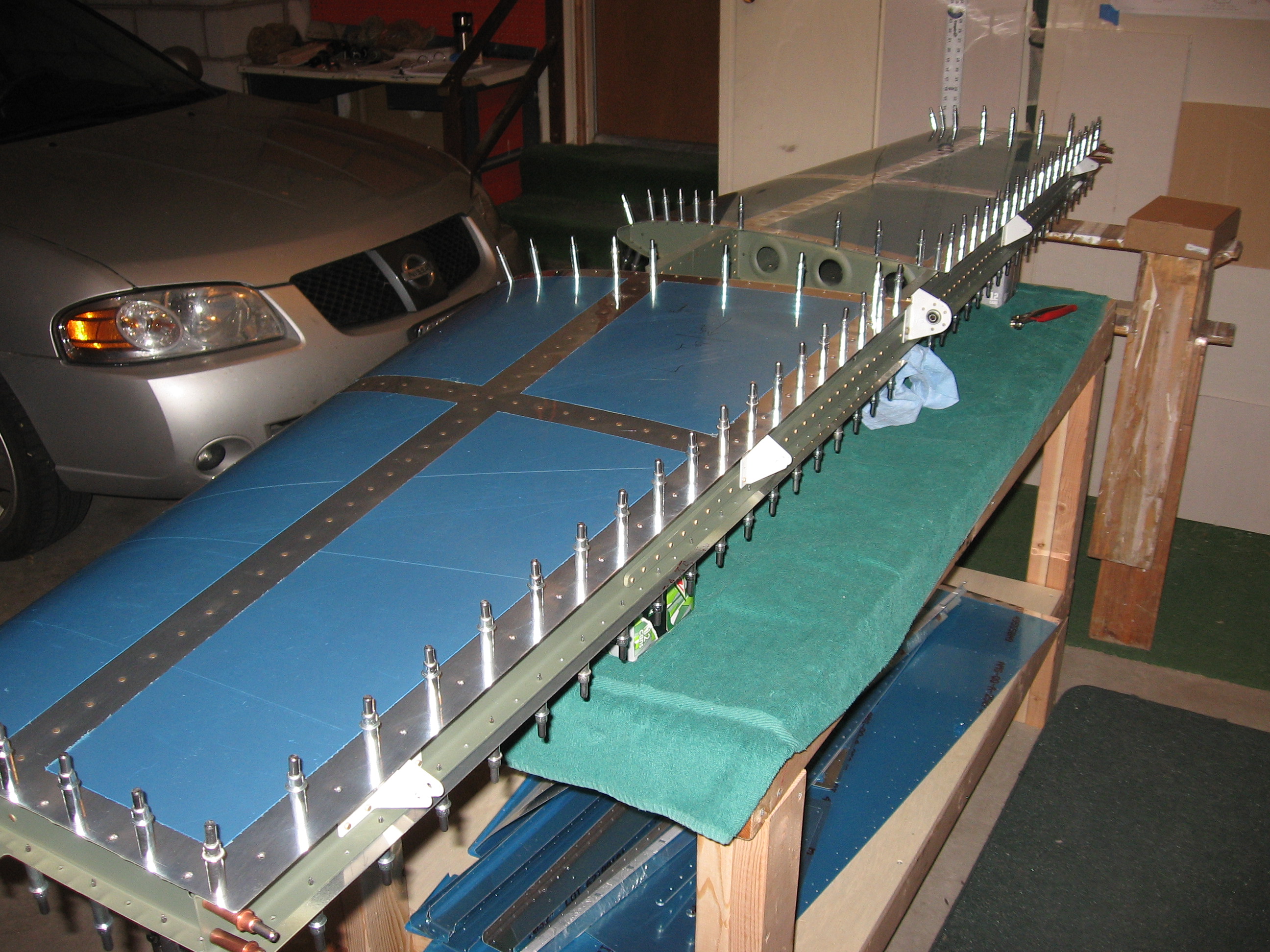

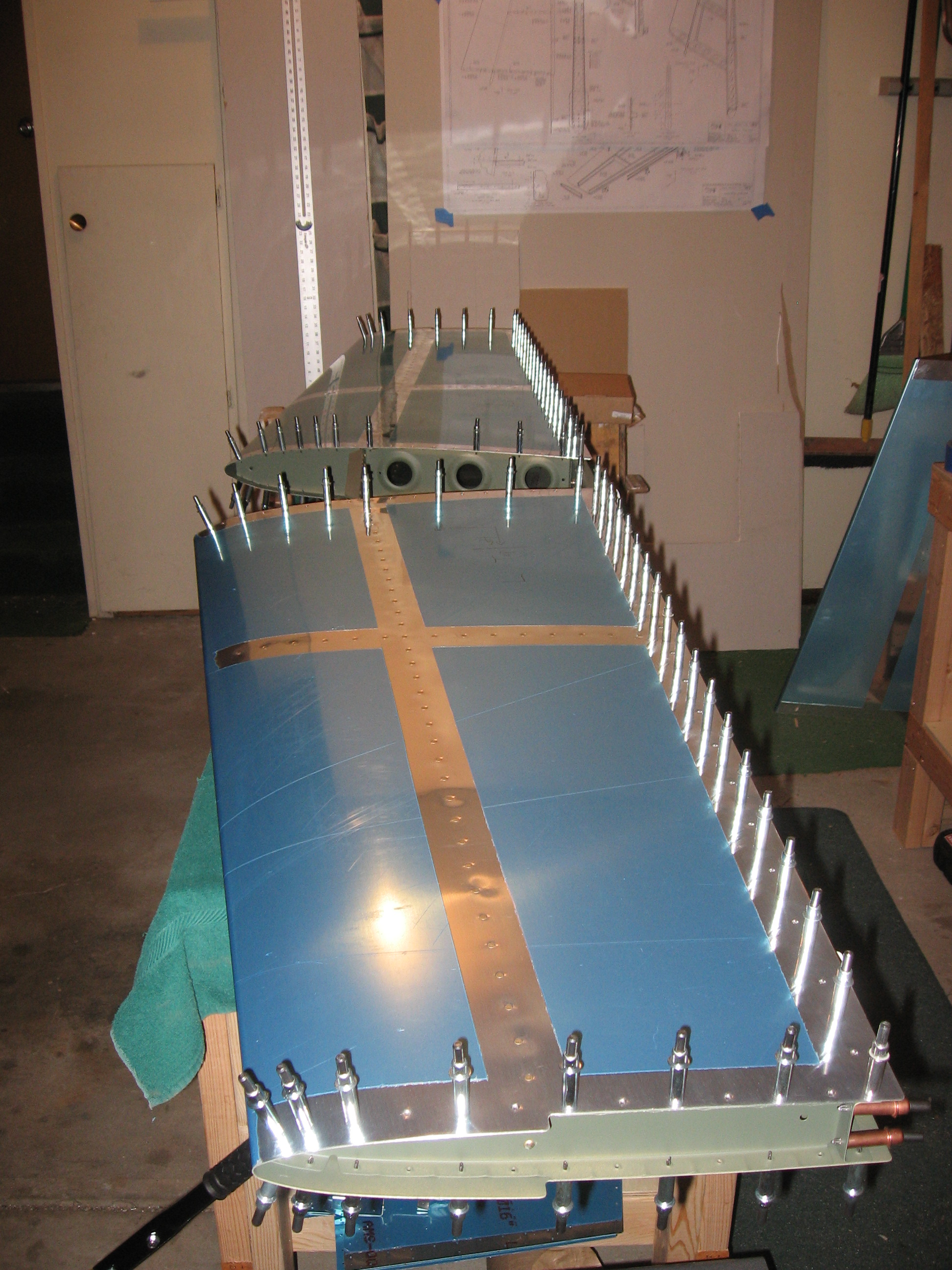

Right side is on. All that is left are the rivets around the edges and the ones that connect the rear spar to the ribs:

IMG_0628

IMG_0629
